TOTAL TRANSMISSION REBUILD: BEARINGS, SYNCHRONIZERS, OIL SEAL – SAMURAI 88.5′-95′

Description

• New in the Original Packaging - (Unless Bulk Packed)
• Stocked & Shipped From - LEXINGTON, KY

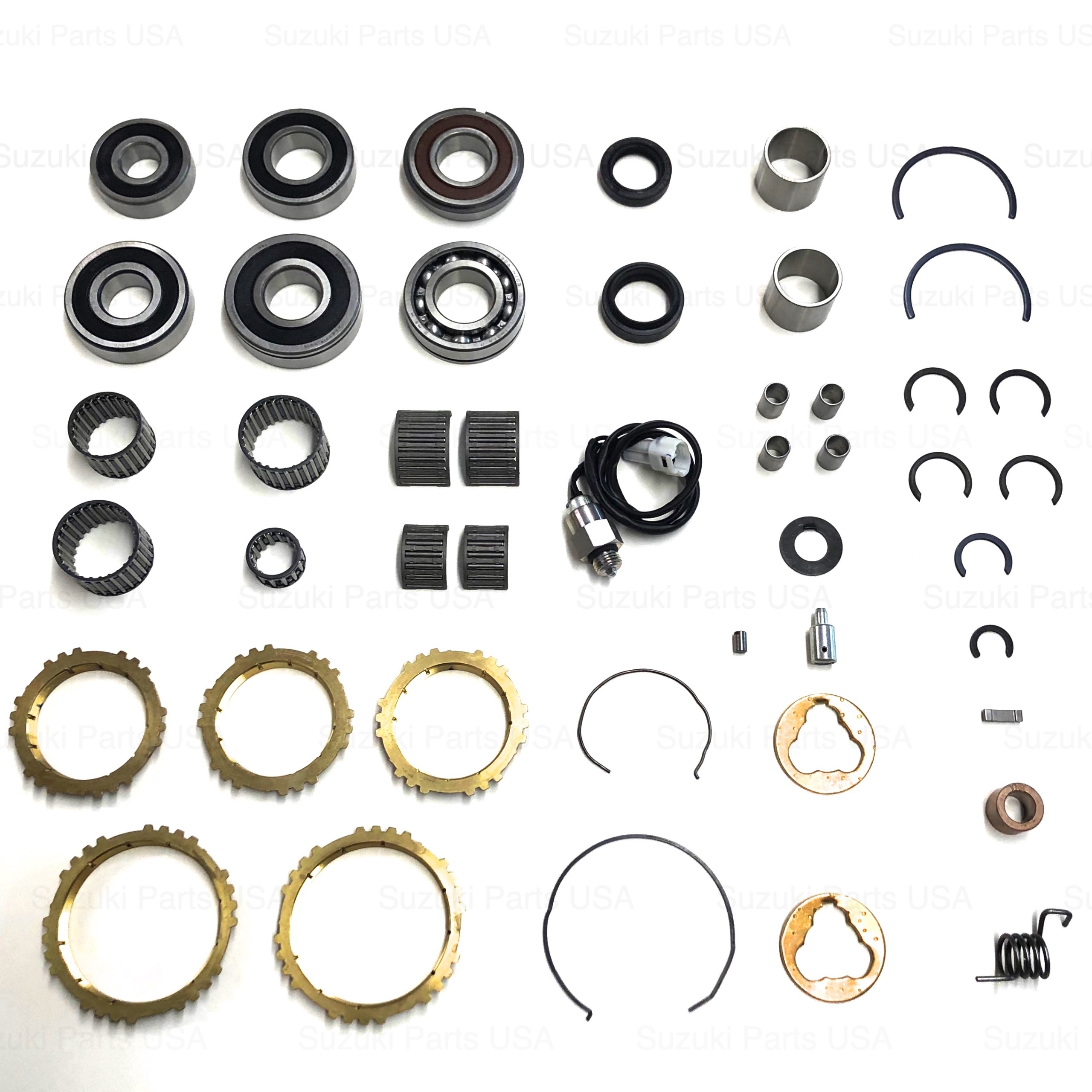

• This is the Suzuki Samurai Complete Transmission Bearing & Synchronizer Rebuild Kit.
• Gives you everything you need to complete a rebuild without paying for unnecessary parts.
• Includes a new Breather Plug & Back-Up Switch
• Also Includes a new Clutch Release Shaft Spring & Bush
• You also Get Additional Springs, Keys & Clips
• Complete Needle & Roller Bears - with Input Oil Seal & Extension Case
• (Japanese Standards Bearings) Made by FAG / NMK / Suzuki Japan / SKF
• Direct Replacement

• Qty 1 - Roller Bearing  #3
• Qty 1 - Roller  Bearing  #20
• Qty 1 - Roller Bearing  #22
• Qty 1 - Roller Bearing  #27
• Qty 1 - Roller Bearing  #29
• Qty 1 - Roller Bearing  #30
• Qty 1 - Needle Bearing  #2
• Qty 1 - Needle Bearing  #12
• Qty 1 - Needle Bearing  #14
• Qty 1 - Needle Bearing  #16
• Qty 1 - Needle Bearing  #19
• Qty 1 - Needle Bearing  #49
• Qty 1 - Oil Seal - Input Shaft #6
• Qty 1 - Oil Seal - Extension Case (On Case Diagram - Not Shown)
• Qty 3 - Synchronizer Ring (high) #36
• Qty 2 - Synchronizer Ring (low) #32
• Qty 1 - Bush  #11
• Qty 1 - Bush  #48
• Qty 1 - C Clip #4
• Qty 1 - Cir-clip #5
• Qty 1 - C Clip #21
• Qty 1 -Cir-clip #23
• Qty 2 - Cir-clip #24
• Qty 1 - Cir-clip #28
• Qty 1 - Spring, Low #34 *CURRENTLY OUT OF STOCK
• Qty 1 - Spring, High #37
• Qty 2 - Key #40
• Qty 1 - Pin #43
• Qty 1 - Breather Plug (On Case Diagram - Not Shown)
• Qty 4 - Case Pins (On Case Diagram - Not Shown)
• Qty 1 - Back-Up Switch (On Case Diagram - Not Shown)
• Qty 1 - Spring,Clutch Release Shaft (On Case Diagram - Not Shown)
• Qty 1 - Bush,Clutch Release Shaft (On Case Diagram - Not Shown)

• Suzuki Samurai      1988.5 - 1995       All Models
